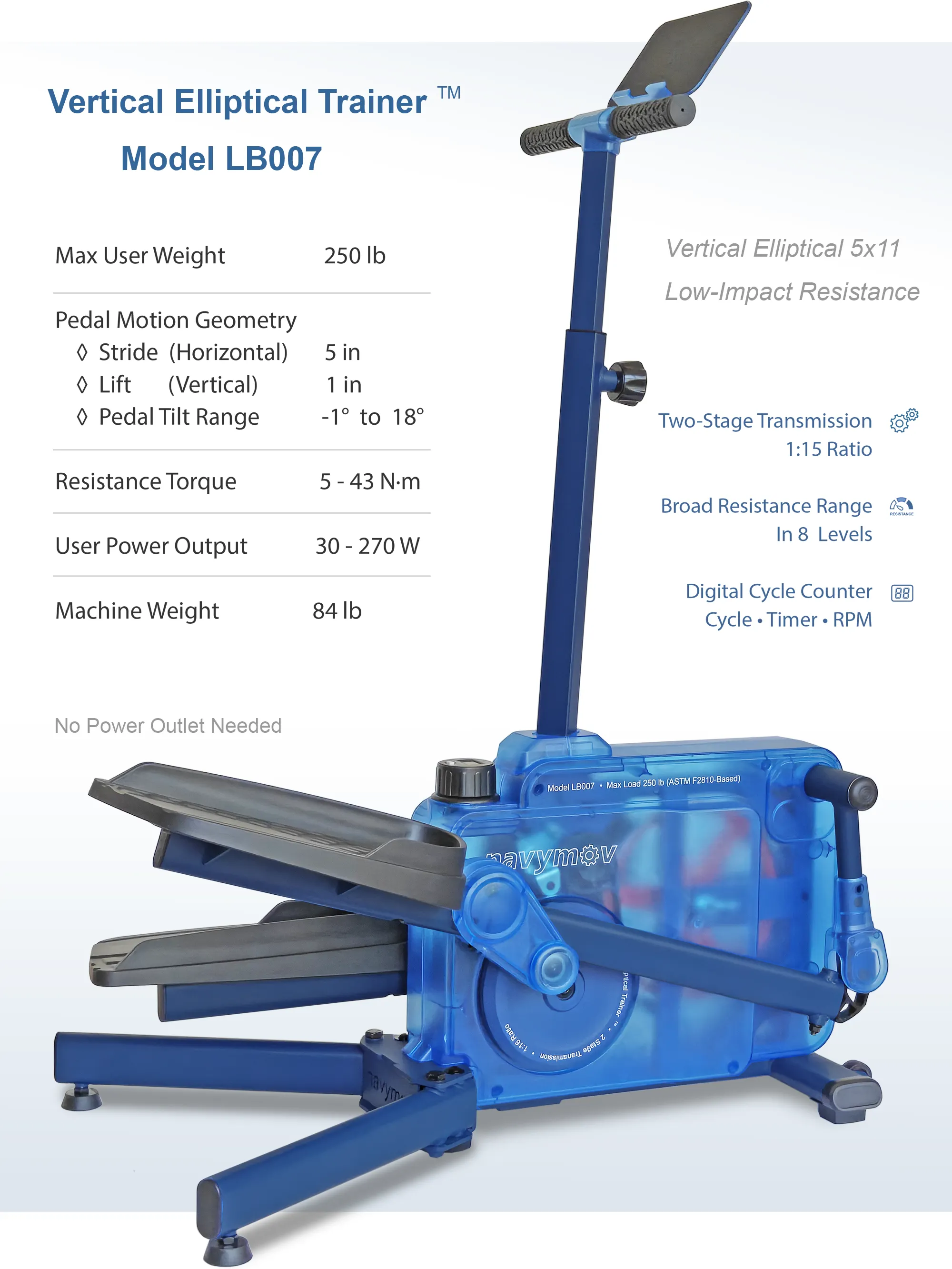

Vertical Elliptical Trainer LB007
LB007 is a vertical elliptical trainer designed for home use. Its innovative two-stage transmission architecture combines a compact footprint, optimized pedal motion geometry, and a smooth, broad resistance range.
The recommended maximum user weight is 250 lb, validated through ASTM F2810-based endurance testing.
Pedal Motion Geometry
| Stride (Horizontal) | 5 in |
| Lift (Vertical) | 11 in |
| Pedal Tilt | -1° to 18° |
Resistance & User Power Output
| Resistance Range | Pedal Torque 5 - 43 N·m
Adjustalbe in 8 resistance levels |
| User Power Output* | 30 - 270 W |
Kinetic Attributes
| Transmission Ratio | 1:15 |
| Flywheel Size/Weight | ⌀ 9.4 in / 5.5 lb |
| Flywheel Speed* | 900 RPM |
| Kinetic Energy Storage* | 110 Joules |
Kinematic Illustration
◇ Lift: 11"
◇ Tilt: -1° to 18°
| Drivetrain Data | |
| Crank | 65 mm |
| Coupler | 420 mm |
| Rocker | 224 mm |
| Ground Link | 405 mm |
| Crank-wheel | ⌀ 240 mm |
| Pulley S11 | ⌀ 66 mm |
| Pulley S12 | ⌀ 191 mm |
| Pulley S2 | ⌀ 36 mm |
| Flywheel | ⌀ 240 mm |
| Transmission Ratio 1:15 | |
Digital Display
| TIME | Session time, triggered by the first cycle of the session |
| COUNT | Current session cycle count |
| LIFE COUNT | Lifetime machine cycle count |
| RPM | Current pedal speed (RPM) |

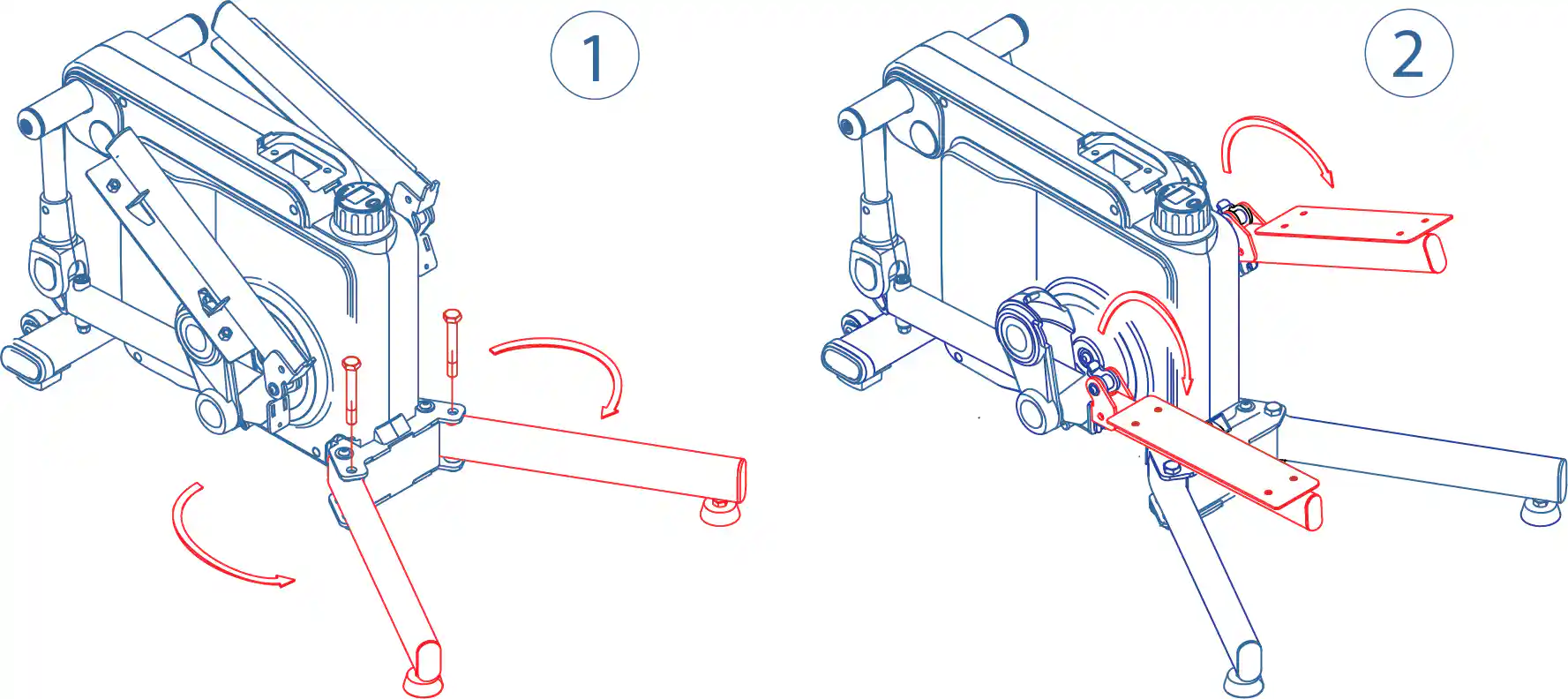

Foldable & Portable
LB007 is foldable and portable:
- Minimal customer assembly
- Fewer opportunities for assembly mistakes
- Easier to transport and store
Blue Translucent Style
The blue translucent style reflects our commitment to premium materials and manufacturing excellence.
The translucent enclosure requires high-grade virgin ABS resin and a well-controlled injection molding process.
Its design inherently demands stricter quality control, as the material reveals potential molding imperfections and makes the underlying steel fabrication and finishing more visible.
Inspired by iMac G3, LB007's translucent style expresses both technical confidence and dedicated craftsmanship.
Testing Protocol & 10-Year Warranty
An ASTM F2810-based testing protocol was developed to validate the structural design, material selection, and mechanical performance of LB007 for the recommended max user weight of 250 lb.
A 1,000,000-cycle endurance validation supports our straightforward 10-year warranty.
Dimensions & Weight
| Footprint (unfolded) | 42 x 23 in |
| Height (adjustable) | 35 - 55 in |
| Machine Weight | 84 lb |
| Shipping Weigth | 98 lb |
| Carton Size | 28 x 17 x 20 in |
